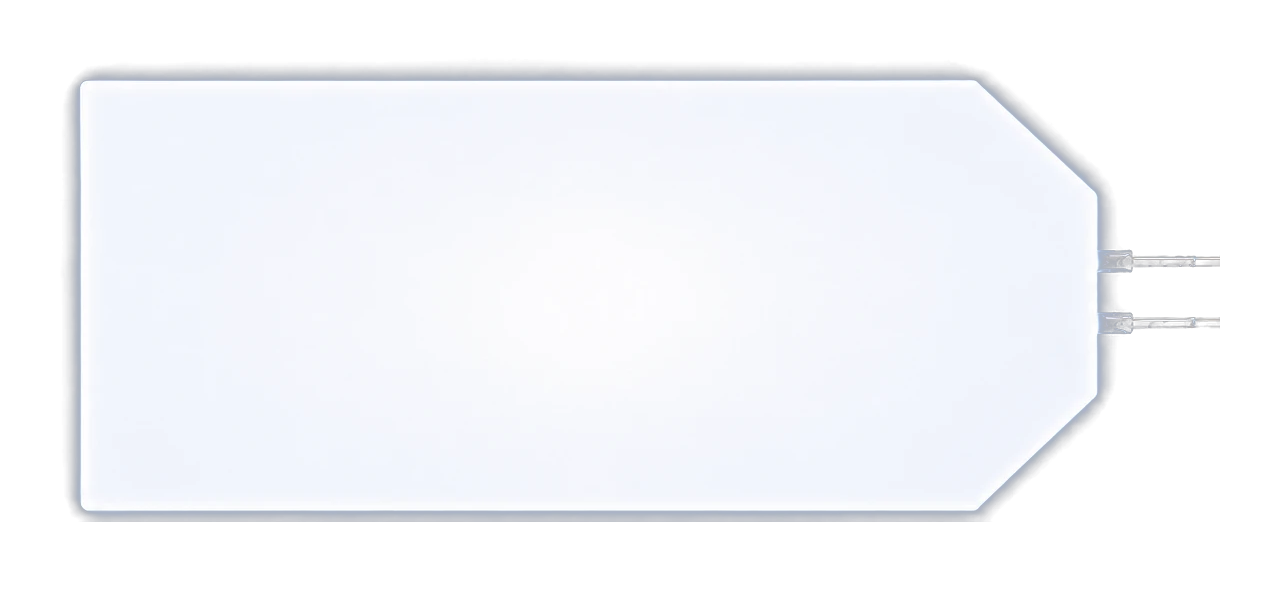

Custom LED Backlights
Custom LED backlights developed to match the LCD size, brightness, colour, thickness, illumination structure and electrical requirements of the application.
LED backlights improve LCD readability in indoor, outdoor and low-light conditions. Each backlight is developed around the LCD size, the enclosure and the application requirement, with uniform illumination and long service life in mind.
Available configurations include edge-lit and direct-lit structures, multiple colours, brightness levels and thicknesses, with customised electrical arrangements. Development is confirmed against an approved project specification before sampling.
- Matched to the LCD dimensions
- Custom colour and illumination options
- Project-specific electrical configuration
Key Features
- Uniform illumination across the viewing area
- Low-power design
- Multiple colour options
- Standard and high-brightness options
- Custom size and thickness
- Edge-lit and direct-lit structures
- Side-lit and bottom-lit light-guide options
- Custom wire or connector configuration
Technical Specifications
Options are confirmed in writing for each project before sampling.
| Parameter | Available options |
|---|---|
| Colour | White / Yellow-Green / Blue / Red / Green / Amber / RGB / Custom |
| Product Option | Standard or Customised |
| Type | Edge LED / Direct LED / Custom Backlight |
| Size | Custom Sizes Available |
| Thickness | Ultra-Thin / Standard / Custom |
| Brightness | Standard / High Brightness |
| Light Guide | Side-Lit / Bottom-Lit |
| Power | Low-Power Design |
| Electrical and Mechanical | Matched to the confirmed product requirement |
Configuration Options
Each parameter is selected to suit the application, viewing conditions, and electrical design.
2
Colour
White, yellow-green, blue, red, green, amber, RGB, or a custom colour matched to the display.
3
Thickness & Size
Ultra-thin, standard, or custom thickness, with custom sizes to fit the LCD and the enclosure.
4
Brightness
Standard or high-brightness configurations, with low-power designs for battery-backed products.
5
Uniformity & LED Placement
Light-guide design and LED placement engineered for consistent brightness across the viewing area.
6
Electrical & Mechanical
Voltage, power consumption, connector or wire configuration, and mechanical mounting matched to the product.
Typical Applications
- Energy meters
- Inverters
- Measuring instruments
- Industrial control panels
- OEM electronic display products
Custom Development Process
-
1
Share drawing or requirement
Send a drawing, sample, or a description of the display you need.
-
2
Technical review
Our engineering team reviews the layout, dimensions, and operating conditions.
-
3
Specification confirmation
Display mode, viewing direction, polarizer, backlight, and interface are agreed in writing.
-
4
Sample development
Samples are developed to the confirmed specification.
-
5
Evaluation and approval
You evaluate the sample in the product and confirm approval.
-
6
Production and inspection
Approved parts move to production with inspection and batch records.
Quality and Testing
Incoming Inspection
Incoming materials are inspected before assembly.
Brightness and Uniformity
Backlight brightness and uniformity are checked across the viewing area.
Assembly Matching
Each backlight is matched to the LCD module during assembly.
Final Verification and Traceability
Visual inspection against the approved sample, final inspection, batch records and traceability.
Information Required for Development
Sharing the following information helps our engineering team review the requirement accurately.
- Overall dimensions and required illumination area
- Required thickness
- Edge-lit, direct-lit or other light-guide requirement
- Colour and brightness requirement
- Voltage, current and connector configuration
- Expected development and production quantity
